Aircraft Hydraulic Test Rig

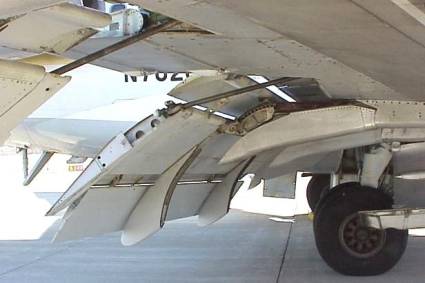

This is a test system which was used to perform the design acceptance and the endurance of an actuation system for moving the flaps of an aircraft.

Implemented using LabVIEW with a PXI chassis and NI Motion controller it allowed the customer to concentrate on their area of expertise which was the construction of the mechanical and hydraulic systems of the test rig
